MAS Advanced Systems & General Supplies provides Tripod Turnstile Gate

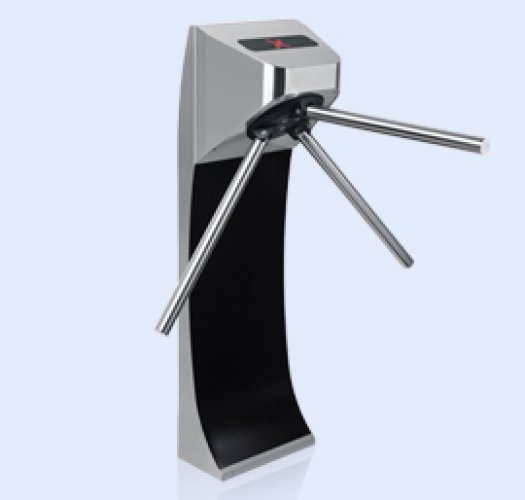

PERCO TTR-10AB Motorized tripod turnstile for outdoor application, with automatic anti-panic function
Application
TTR-10A Motorized tripod turnstile with automatic anti-panic barrier arms is designed for use in paid access systems, including transport, and at entrances of enterprises.
The main features of the TTR-10A tripod turnstile are the electric drive of the barrier arm rotation during the passage, automatic anti-panic barrier arms that fold down at a signal from an emergency unlocking device, or at a power loss, and stainless-steel housing.
The delivery set includes an RC-panel; the orientation of the RC-panel buttons relative to the directions of passage is set when connecting to the turnstile. The turnstile provides the passage control in two directions; the turnstile operating mode may be set independently for each passage direction.
It is recommended to install one turnstile per 500 people working the same shift, and based on a maximum working load of 30 persons/ min. Turnstiles can be equipped with railings. The turnstile provides passage control in two directions, a turnstile operating mode may be set independently for each.
Main features
- operation of the turnstile from RC-panel, WRC, ACS
- possibility of installation in the vehicle interior on vertical handrails (pipes) (TTR-10AT), on a vertical wall (TTR-10AK) or on the floor (TTR-10AB)
- possibility of outdoor application
- built into the turnstile housing electronic boards
- safe voltage – max. 29 V; power consumption – 150 W (maximum value of 260 W can only be reached for a short period of time in some states of the turnstile, the rest of the time power does not exceed 15 W)
- to power the turnstile, a power supply of at least 5.5 A is needed; when the emergency unlocking device sends a command, as well as when the power is turned off, the passage is automatically opened by switching the barrier arm to the vertical position
- after restoring the supply voltage or removing the Fire Alarm signal the barrier arm is moved to the working position manually
- electric drive provides automatic easy rotation of the barrier arms to the home position during the passage
- smooth silent operation of the turnstile electric drive
- the drive features a high-precision sensor (encoder) that correctly detects the barrier arms position
- possibility to connect an intrusion detector and a siren to the turnstile
- two control modes – pulse and potential
l • galvanically isolated outputs
Fire Alarm control input that allows connecting the emergency unlocking device
relay outputs for connecting additional external indicators of the passage grant / denial
| Brand | PERCO |
